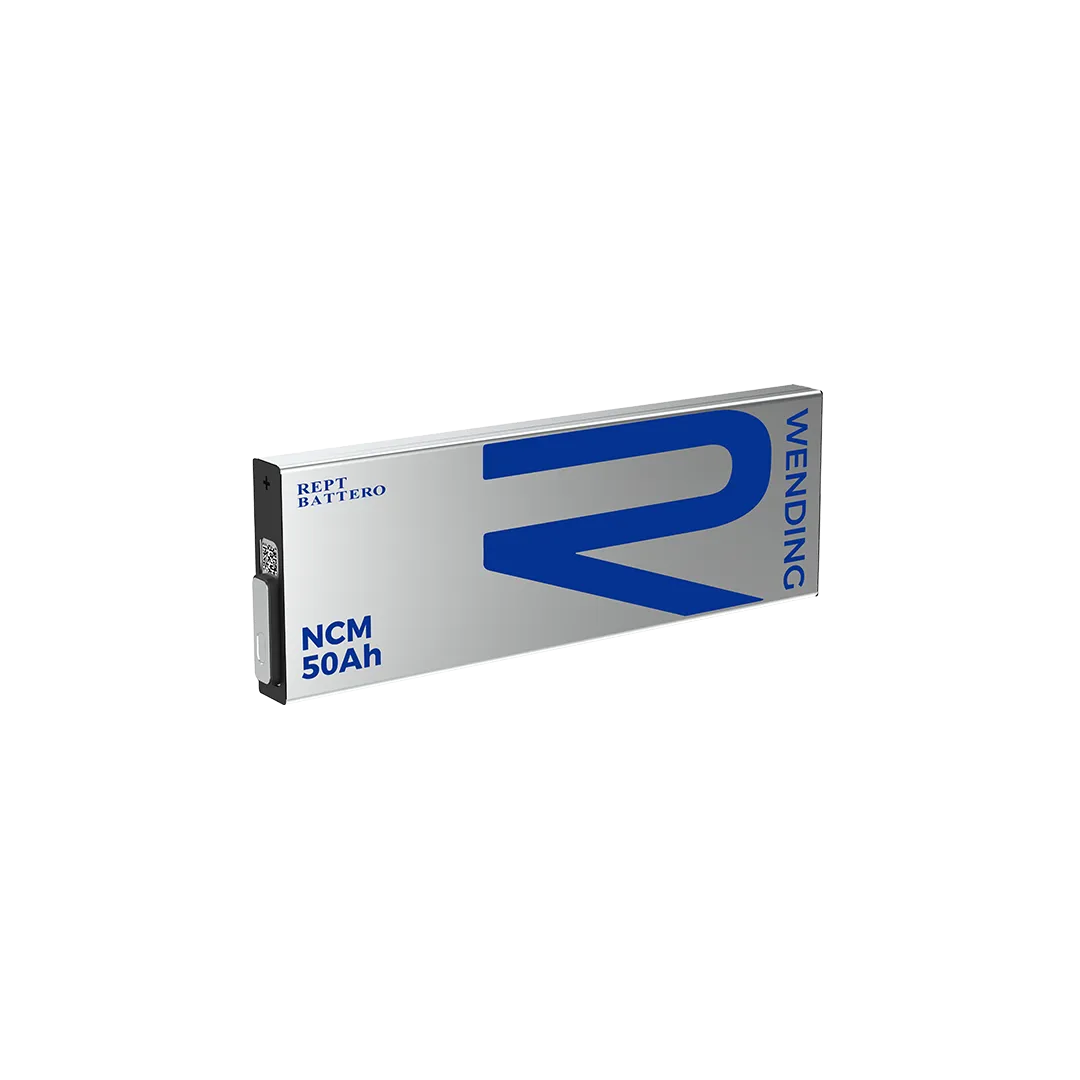

50Ah Battery Cell eVTOL Ultra-High EC Nickel Cells

Key Characteristics:

Cell Chemistry：High-nickel NCM

Leveraging Tsingshan Group’s resource advantages and aligning with the future development trends of EV batteries, we have developed a high-energy-density battery cell (≥310Wh/kg) specifically designed for low-altitude aircraft. This cell supports high-power discharge and delivers stable, continuous power tailored to the demands of low-altitude flight. Additionally, we have established a strategic partnership with VERTAXI an emerging leader in the low-altitude aircraft industry, enabling deep collaboration on eVTOL energy solutions. We proudly showcased the first high-energy-density battery cell for this sector at CIBF2025. Furthermore, we are advancing the integration of semi-solid and solid-state battery technologies to this field to further enhance battery safety and performance.

Ultra-High Energy Density

·Single-cell energy density: 310 Wh/kg; System-level energy density: 270 Wh/kg

· Significantly surpasses the average energy density of automotive-grade batteries

· Enables eVTOL aircraft to achieve a range of up to 300 kilometers

· Supports long-distance missions and prolonged airborne operations

· Enhances the practicality and flexibility of aerial vehicles

High Discharge Rate

· Designed to meet the stringent power demands of emergency maneuvers and rapid ascents

· Supports a continuous 6C discharge rate

· Capable of sustaining 120 seconds of discharge at 30% State of Charge (SOC)

· Provides robust and immediate power support for eVTOL operations

Safety and Reliability

· Incorporates three innovative technologies to enhance ion mobility and reduce battery failure risks

· Facilitates compliance with rigorous aviation airworthiness certifications

· Employs advanced low-impedance solid-liquid interface and high-safety high-nickel chemistry technologies

Lightweight Design

· Addresses the critical weight sensitivity of low-altitude aircraft

· Utilizes a novel lightweight metal casing combined with a thickness-gradient top cover design

· Achieves a structural weight reduction of 60 grams

· Results in an overall battery weight decrease of approximately 40%

Specifications

Items	Technical Indicators
Cell Chemistry	LiFePO4 (LFP)
Capacity	54Ah
Rated Voltage	3.17V
Energy Density	160Wh/kg
Dimension	3019487(mm)
Fast Charging (10%~80%)	2.2C
Weight	1.07±0.02(kg)
Application	PHEV, REEV
