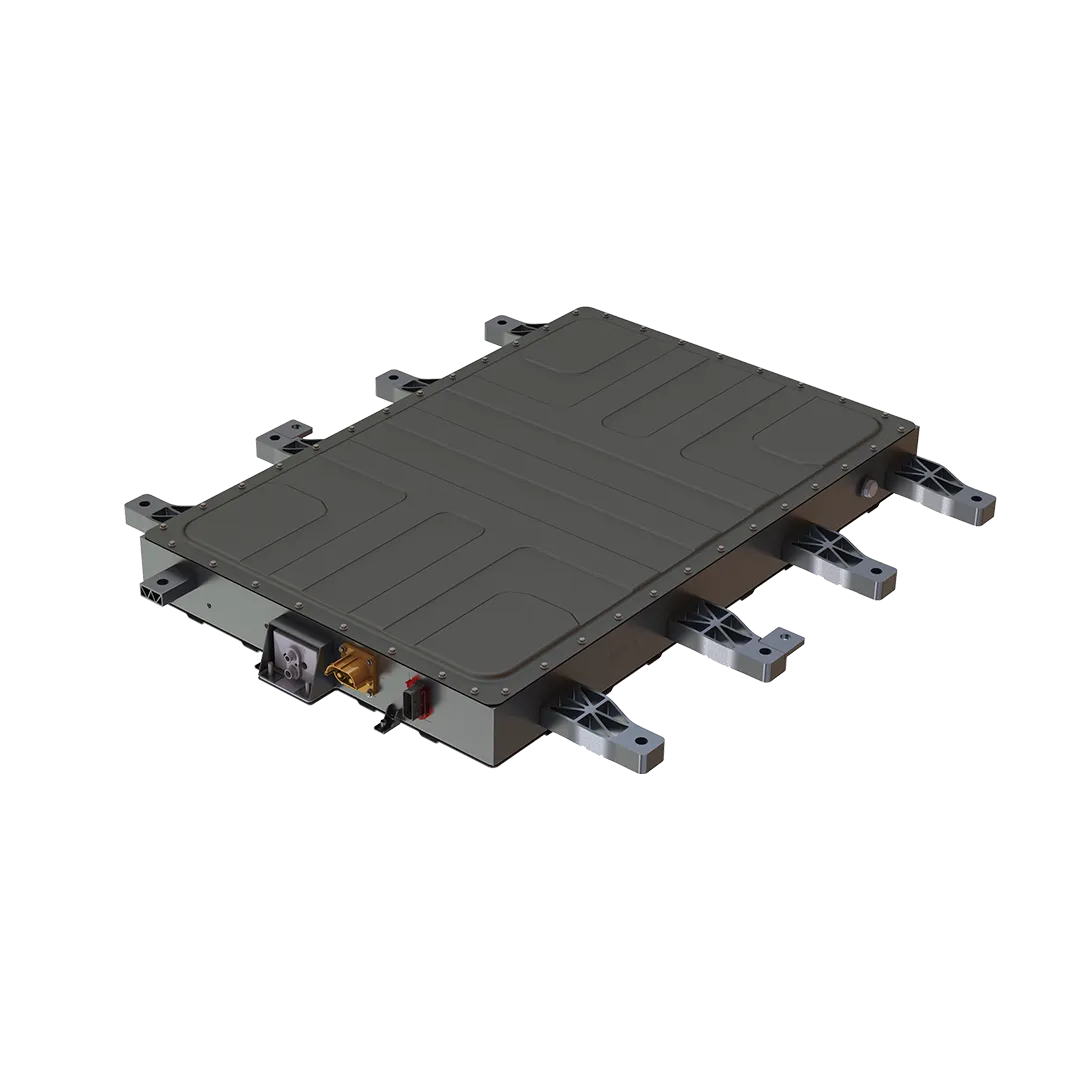

GREEN BANK PHEV Pack

Tailored for the PHEV Market

Flexible Capacity Range

Improved Efficiency & Cold Performance

Application: PHEV

Cell Chemistry：LiFePO4

About GREEN BANK Pack

For the growing PHEV market, REPT BATTERO brings the GREEN BANK series of special battery packs, which is a customised green emission reduction solution for PHEVs.
REPT BATTERO’s GREEN BANK series of battery packs range from 10-55kWh to meet the needs of different range, and the fuel saving rate of PHEV vehicles equipped with these packs can reach more than 35% compared with traditional energy models. The battery pack has excellent low-temperature performance and can achieve ultra-low temperature cold starting at -30℃.

Specifications

Items	Technical Indicators
Cell Chemistry	LiFePO4 (LFP)
Energy (kWh)	10
Dimensions (mm)	1098716120
Operating Voltage Range (V):	240-438
Nominal Voltage (V)	380.4
Charging Time (Minimum @10–80% SOC)	34
Peak Charging Power (kW)	66kW@10s
Peak Discharging Power (kW)	133kW@10s
Thermal Management	Direct Cooling and Thin-Film Heating
IP Rating	IP67 & IPX9K
Connection Mode	Quick Plug Capability
Communication Protocol	CAN
Operating Temperature (°C)	-30~55
Battery Capacity (Ah)	28
Battery Nominal Voltage (V)	3.17
Battery Energy Density (Wh/kg)	140
Battery Dimensions (mm)	26.514885
Application Fields	PHEV
